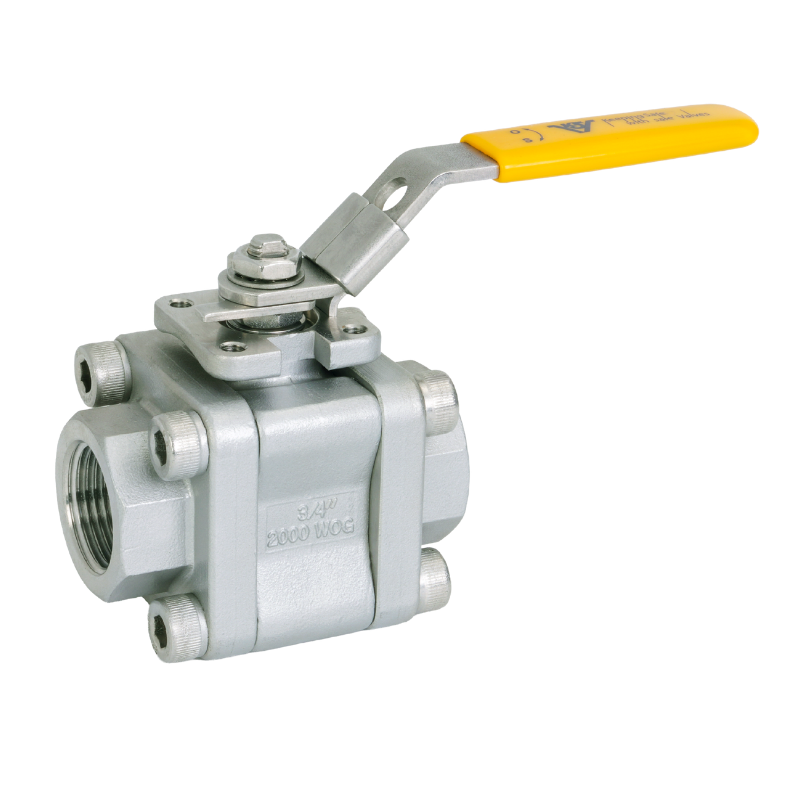

B380F

PRODUCT FEATURES

‧    Three-Piece Swing-Out Design Ball Valve

‧    Manufactured & Tested to MSS SP-110, API 598, ANSI B16.34

‧    Various Thread Types Available (NPT, BSP, etc.)

‧    Various End Connections Available (Socket Weld, Butt Weld, Extended Butt Weld, etc.)

‧    For General Purpose Industrial And Chemical Applications

‧    Oval Handle upon request

‧    Blow-Out Proof Stem

‧    Anti-Static Device

‧    Fire-tested to API 607, certified by LR

SPECIFICATION

‧    Investment Casting Body

‧    Pressure Rating: 2000 PSI WOG

‧    Size Available: 1/2” to 2″

‧    Shell 3000 PSI Water 100 PSI Air

‧    Seat 2200 PSI Water 100 PSI Air
